WideIOT · WG series industrial intelligent gateway is a high reliability industrial intelligent gateway that supports the collection of data of various industrial equipment such as PLC, instrument, water environmental protection, power equipment, CNC, and has protocol analysis and edge computing. It is the core edge node for building industrial Internet system.
WideIOT WD Series IOT Terminals are industrial wireless terminals that support IO acquisition control and serial port transparent transmission. They support data acquisition and control of multiple channels of DI, DO, AI, AO in industrial sites, and offer LoRa local networking and 4G data upload to the cloud. Thus, they realize wireless data acquisition and remote control of numerous on-site devices such as sensors, instruments, indicator lights, actuators, and main controllers.
WideIOT·WR series industrial wireless router is a network connection that supports 5G/4G/WIFI/Ethernet, etc., supports VPN networking, and provides low-latency, high-reliability, and high-security network access for field devices. input, so as to realize large-scale equipment networking applications.
The WideIOT WS-Series Industrial Switches deliver high stability,re- liability and security with easy maintenance. Featuring dual power and network redundancy, they are ideal for smart grids, rail transit,smart cities, safe city projects, new energy and intelligent manufacturing.
The WideIOT NAT Coupler is a specialized security isolation device for production networks. It supports IP renaming for unified IP planning, enables cross-segment device access via network segmentation, and effectively mitigates same-segment conflicts and broadcast storms. It is ideal for industrial networks demanding high data reliability, including those with PLCs, HMIs, CNCs, DCSs, and MES.
Not sure which product is right for your application?
Our technical team is ready to help you.
Phone Support
Email Support
24/7 Availability
English Support
Leading provider of industrial IoT solutions for digital and intelligent transformation. Established in 2011, we have served over 20,000 customers in more than 100 countries.
All-in-One for Device Connectivity & Edge Computing
3x Gigabit Ethernet | 10x RS232/485 | USB | IO
5G | 4G | Dual-band WiFi | Ethernet
Multi-Protocol(200+)| Edge Computing
Data Encryption | Breakpoint Resume
5G/4G,，3 network ports，10serial ports
Advanced capabilities designed for industrial IoT applications

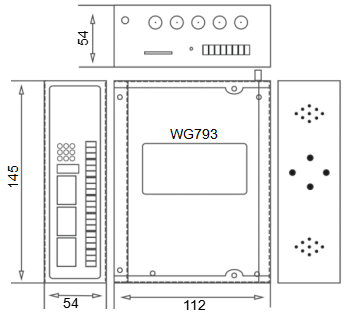

Detailed technical specifications for the WG793 Industrial GateWay
Choose the right WG793 configuration for your specific requirements
5G overseas (Qualcomm) + General MQTT + 10x RS485 (for global 5G applications with multiple serial devices)
5G domestic + General MQTT + 10x RS485 (for domestic 5G applications with high-density serial connections)
4G CAT4 + General MQTT + 10x RS485 (cost-effective for 4G networks with extensive serial device connectivity)
Not sure which configuration is right for your specific needs? Our technical experts are here to help you make the best choice.
Access technical documentation and resources for the WG793 Industrial GateWay
Industrial intelligent gateway - introduction (PDF)
WG793 Product Specification (PDF)
Gateway Product User Manual (PDF)
Open platform format API interface (PDF)
IOT Device Tunnel (software)
Can't find what you're looking for? Our technical support team is here to help with any questions or specific documentation needs
Get help with product usage and troubleshooting
Watch instructional videos on product setup and configuration
Request custom documentation for specific use cases
Frequently asked questions about the WG793 Industrial GateWay
The WG793-NF15 series (Qualcomm module) supports global 5G Sub-6 GHz bands, covering major operators in Europe, North America, Asia-Pacific, and other regions. For specific band details, please contact our sales team for the compatibility list.
Yes, WG793 supports connection to Azure IoT Hub and AWS IoT Core via MQTT protocol. We provide step-by-step configuration guides for both platforms. The gateway supports MQTT over TLS/SSL encryption, ensuring secure data transmission. For detailed integration instructions, please refer to our cloud platform integration guides or contact technical support.
The NF65 (domestic) is optimized for Chinese operators, while the NF15 (overseas) uses a Qualcomm module with broader global band support. Choose NF15 for international deployments.
Yes, WG793 is fully compatible with Siemens S7-1200/1500 PLCs through its embedded protocol engine. It supports S7 communication protocol for seamless data exchange and remote monitoring of Siemens PLCs.
WG793 comes with a standard 2-year warranty for overseas orders. We provide comprehensive after-sales support including remote technical assistance, firmware updates, and replacement services. Extended warranty options are available upon request.
Yes, WG793 is designed for industrial environments and operates reliably in temperatures ranging from -20℃ to 70℃. The device features a fanless cooling design and industrial-grade components suitable for harsh conditions.
The WG793 supports 5G NSA mode with downlink up to 2.5Gbps and uplink up to 650Mbps; in SA mode, downlink up to 2.1Gbps and uplink up to 900Mbps.
With 10 RS232/485 serial ports, the WG793 can connect to a large number of serial devices simultaneously, making it ideal for applications such as factory automation, environmental monitoring, and energy management where multiple sensors, meters, or controllers need to be integrated.
