WideIOT · WG series industrial intelligent gateway is a high reliability industrial intelligent gateway that supports the collection of data of various industrial equipment such as PLC, instrument, water environmental protection, power equipment, CNC, and has protocol analysis and edge computing. It is the core edge node for building industrial Internet system.
WideIOT WD Series IOT Terminals are industrial wireless terminals that support IO acquisition control and serial port transparent transmission. They support data acquisition and control of multiple channels of DI, DO, AI, AO in industrial sites, and offer LoRa local networking and 4G data upload to the cloud. Thus, they realize wireless data acquisition and remote control of numerous on-site devices such as sensors, instruments, indicator lights, actuators, and main controllers.
WideIOT·WR series industrial wireless router is a network connection that supports 5G/4G/WIFI/Ethernet, etc., supports VPN networking, and provides low-latency, high-reliability, and high-security network access for field devices. input, so as to realize large-scale equipment networking applications.
The WideIOT WS-Series Industrial Switches deliver high stability,re- liability and security with easy maintenance. Featuring dual power and network redundancy, they are ideal for smart grids, rail transit,smart cities, safe city projects, new energy and intelligent manufacturing.
The WideIOT NAT Coupler is a specialized security isolation device for production networks. It supports IP renaming for unified IP planning, enables cross-segment device access via network segmentation, and effectively mitigates same-segment conflicts and broadcast storms. It is ideal for industrial networks demanding high data reliability, including those with PLCs, HMIs, CNCs, DCSs, and MES.
Not sure which product is right for your application?
Our technical team is ready to help you.
Phone Support
Email Support
24/7 Availability
English Support
Leading provider of industrial IoT solutions for digital and intelligent transformation. Established in 2011, we have served over 20,000 customers in more than 100 countries.
Connecting Industrial Equipment to the IoT World
1x Serial | 8AI / 4DI / 4DO
LoRa 12KM | 4G CAT1 | WiFI
Analog / Digital | Pulse Counting
-40~85°C | 5‑35V DC
LORA/4G,multi-channel AI, AO, DI, DO data acquisition
Advanced capabilities designed for industrial IoT applications

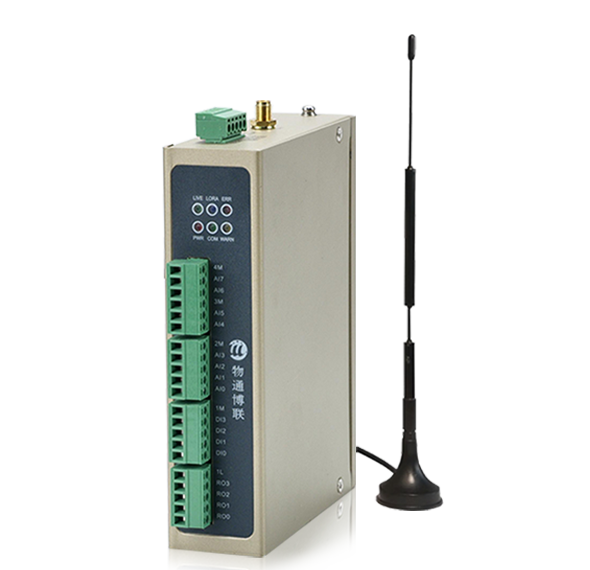

Detailed technical specifications for the WD240 IOT Terminals
Choose the right WD240 configuration for your I/O and networking requirements
LoRa + 8AI‑4DI‑4DO + RS485 (ideal for remote sensor networks, domestic band)
4G CAT1 + 8AI‑4DI‑4DO + RS485 (direct cloud connectivity without local gateway)
Combine with WG593 LoRa gateway for large‑scale distributed I/O networks
Not sure which configuration is right for your specific needs? Our technical experts are here to help you make the best choice.
Access technical documentation and resources for the WD240 IOT Terminals
WD240 Product Specification (PDF)
WD240 Product User Manual (PDF)
Can't find what you're looking for? Our technical support team is here to help with any questions or specific documentation needs
Get help with product usage and troubleshooting
Watch instructional videos on product setup and configuration
Request custom documentation for specific use cases
Frequently asked questions about the WD240 IOT Terminals
WD240 offers up to 8AI‑4DI‑4DO and supports 12‑bit ADC, while WD140 is a basic model with 2AI‑1DI‑1DO. Choose WD240 when you need more I/O channels or higher analog resolution.

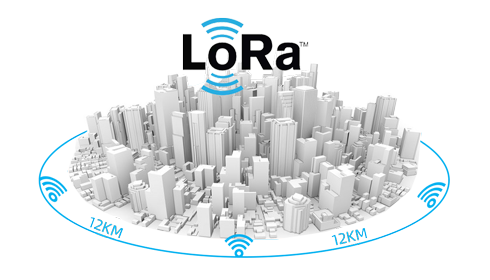

Yes, the high‑power LoRa version (30dBm) supports up to 12KM line‑of‑sight communication. It's ideal for wide‑area sensor networks in mines, farms, or water conservancy projects.
The terminal supports MQTT protocol with JSON format. For the 4G version (WD240‑G), simply configure the cloud broker address and credentials via the web interface. It can connect to WideIOT Cloud, AWS IoT, Azure, or private MQTT brokers.

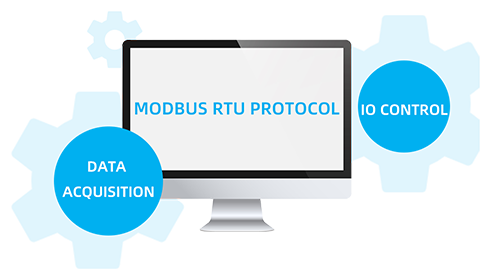

Yes. You can extend Modbus RTU networks wirelessly using LoRa. The terminal works as a Modbus gateway, collecting data from serial devices and transmitting via LoRa to a central gateway (e.g., WG593).
5‑35V DC wide voltage input, operating temperature -40°C to 85°C, with industrial‑grade EMC protection. Suitable for harsh outdoor and industrial environments.
Yes, we provide MQTT JSON development interfaces and can customize data templates to match your cloud platform requirements. Contact our support for details.
Yes, it supports Modbus RTU, making it easy to integrate with SCADA, HMI, and PLC systems. It can also forward data to OPC UA servers via the cloud gateway.
We offer 1‑year warranty and lifetime technical support. 7×24 hotline, online chat, and remote assistance are available. On‑site deployment services can be arranged.
